Edge Distributed Data Center Power Architecture
Reliable, modular data center power architecture that provides high power density and can grow with a data centers’ computing needs. The Edge power architecture can help improve efficiency, reduce data center power costs, and improve white space utilization.
DC power system that helps meet the power requirements of telecom central office and mobile switching office applications. The power system can provide up to 20,000A output capacity in integrated, multi-cabinet configurations that implement three-phase three-wire rectifiers for commercial 208/240VAC or 480VAC power.
Scalable power systems that feature up to 2,640A of GP100 rectifier capacity per bay along with up to 45 inches of vertical space for DC distribution panels. Can be configured with up to eight bays for a total system capacity of up to 20,120A at 48VDC. Available in three-phase 480VAC or 240VAC versions.
Scalable power system that integrates high-efficiency Infinity NE075 rectifiers. A fully equipped bay requires only 15.75” of rack space for nine rectifier shelves, allowing for up to 2,700A of rectifiers and 48” of distribution. Multi-cabinet configurations can provide up to 21,600A capacity for most small, medium, and large-sized applications.
Can be configured as a +24V or -48V single-voltage power system or as a “dual-voltage” power system. Primary voltage capacity of 1,600A at 24V and up to 1,600A at 48V. Temperature-hardened for use in -40C to +75C environments, and compact base system with four power shelves occupies 18RU of 23” wide, 21” deep rack space. Various distribution options available.
Infinity M HC
Configured as a +24V or -48V single-voltage power system or as a “dual-voltage” power system supporting rectifiers and converters. The high-capacity Infinity M can range from 1,200 to 2,100A in a single bay which can be expanded with a supplemental bay for total system capacity of 4,200A. Various DC distribution options available.
Compact power plant supporting 48V operation and output capacities up to up to 500A (27kW). Can be equipped with one or two distribution heads, with each 3U tall distribution modules accommodating up to 26 load DIN breaker positions and up to eight battery DIN breaker positions. Power system is ECO Priority Source ready.
Slimline (SPS) Power System
Large power plant features in a compact 1.75" high and 10.3" deep shelf that can be mounted in 19”- or 23”-wide frames. Power system can provide 3000W/60A single-shelf capacity with three power slots for rectifiers and distribution. Also features a Pulsar Edge controller for advanced control functionality.
CPS6000 M2 Power System
48V, 23-inch-wide, front-access, frame-mounted battery plant. Up to 1,000A capacity in a 15” deep power system that can operate from commercially available 208/220/240VAC single-phase power. 110VAC operation also available. Well suited for small central offices, huts/vaults, and large customer premise applications.
RP-Series Power Solutions for 5G Repeaters
5G repeater power system with deployment flexibility and robust power architecture. Incorporates proven rectifier technology integrated with an AC service-entrance-rated termination with AC input breakers, field replaceable AC surge protection, DC output overcurrent protection and DC surge protection – all in a pole-mounted enclosure.

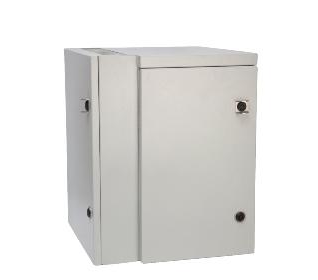

SC-Series Outdoor Power Solution
Designed to provide customers with an environmentally protected, enclosed mounting space for their equipment, reliable power solutions to meet their needs, and appropriate thermal management for enhanced long-term performance. Six rack units of easily configurable 19”-wide space for customer equipment.
Power Express Shelves
NEC Class 2-rated distribution shelves that provide 100VA limited circuits for safe powering of remote loads. Shelf configurations include a 32-circuit limiter shelf, a 32-circuit extended reach shelf with integrated voltage boost, and a 16-circuit shelf with an integrated rectifier.
Integritas Industrial DC Battery Charger
Scalable, modular battery charger with single-charger N+1 and N-N redundancy. switch-mode rectifier technology, hot-swappable components, and local and remote monitoring. Available in 24VDC, 48VDC or 125VDC primary output options, with up to 150A output currents.
Integritas Industrial DC Power System
Comprehensive, configurable DC power systems for mission-critical applications. Available with DC power and batteries in a single cabinet or with batteries separate for larger systems. DC output voltages include 24V, 48V, 125V, or 240V, and power capacities range from 2.6kW to 20kW in DC power plus battery configurations and up to 125kW in battery-separate versions.

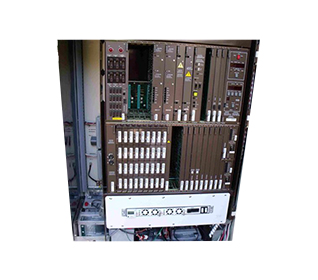

Ferro/SCR retrofit power solution that enables upgrades from legacy ferro-resonant rectifiers or SCRs to modern switch-mode rectifiers and controller technology, preserving distribution and cabling investments. Includes active rectifier management, thermal compensation, and battery management.

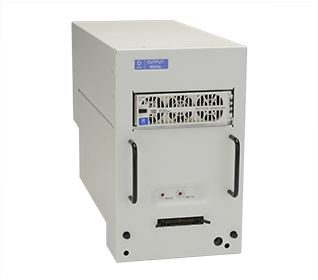

ECS retrofit power solution that enables legacy Lineage 2000 ECS power systems to be upgraded with modern rectifiers and controller technology while also preserving distribution and cabling to minimize labor and costs. Includes active rectifier management, thermal compensation, and battery management.
