— — Filter Modules

The Filter Module Series offers ratings of 5A, 7A, 10A, 12A and 20A and reduce the conducted common-mode and differential-mode noise on input or output lines of high-frequency switching power supplies. They provide high insertion loss throughout the frequency range regulated by the FCC and CISPR for conducted emissions.

Benefits

Optimized for high-frequency DC/DC modules.
Available in 5A, 7A, 10A, 12A and 20A.
Exceptional thermal performance.
Designed to meet class B CISPR limits.

Applications

Enterprise equipment.
Intermediate bus voltage application.
Wireless equipment.
Access and optical network equipment.
Distributed power architectures.

Power Modules	Vin/Vout Range	Iout	CM Insertion Loss	DM Insertion Loss	ECAD MODEL
FLT007A0 Documents (opens in a new window) FLT007A0_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_FLTR (opens in a new window) EU RoHSIII_FLT007A0-SRZ (opens in a new window) EU RoHSIII_FLT007A0Z (opens in a new window) CE Declaration of Conformity_FLTR Series (opens in a new window) REACH_SVHC-240_FLT007A0Z Through hole	0V-75V	7A	50dB	50dB	PCB Symbol, Footprint & 3D Model
FLT012A0 Documents (opens in a new window) FLT012_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_FLTR (opens in a new window) EU RoHSIII_FLT012A0-SZ (opens in a new window) EU RoHSIII_FLT012A0Z (opens in a new window) CE Declaration of Conformity_FLTR Series (opens in a new window) REACH_SVHC-240_FLT012A0Z Through hole	0V-75V	12A	45dB	55dB	PCB Symbol, Footprint & 3D Model

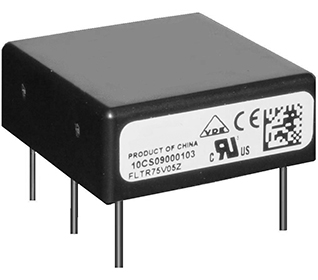

FLTR75V05 Documents (opens in a new window) FLTR75V05_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_FLTR (opens in a new window) UKCA_DECLARATION_FLTR Series (opens in a new window) CE_DECLARATION_FLTR (opens in a new window) TUV_CERTIFICATE_FLTR (opens in a new window) EU RoHSIII_FLTR075V05Z (opens in a new window) CE Declaration of Conformity_FLTR Series (opens in a new window) REACH_SVHC-240_FLTR75V05Z	0V-75V	5A	28dB	25dB	PCB Symbol, Footprint & 3D Model
FLTR100V20 Documents (opens in a new window) FLTR100V20_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_FLTR (opens in a new window) TUV_CERTIFICATE_FLTR (opens in a new window) EU RoHSIII_FLTR100V20Z (opens in a new window) CE Declaration of Conformity_FLTR Series (opens in a new window) REACH_SVHC-240_FLTR100V20Z Filter module	0V-75V	20A	32dB	36dB	PCB Symbol, Footprint & 3D Model
FLTR100V10 Documents (opens in a new window) FLTR100V10_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_FLTR (opens in a new window) TUV_CERTIFICATE_FLTR (opens in a new window) TUV_CERTIFICATE_FLTR (opens in a new window) EU RoHSIII_FLTR100V10-62Z (opens in a new window) EU RoHSIII_FLTR100V10Z (opens in a new window) CE Declaration of Conformity_FLTR Series (opens in a new window) REACH_SVHC-240_FLTR100V10Z	0V-75V	10A	36dB	44dB	PCB Symbol, Footprint & 3D Model
