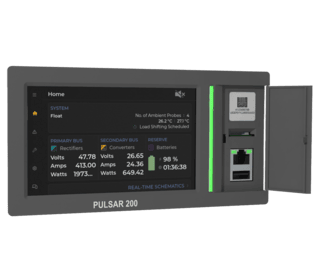

Designed for the power infrastructure of tomorrow, the Pulsar 200 controller redefines DC power system control with modular hardware, edge intelligence, and zero-trust security. It features a vibrant 5-inch touchscreen for live schematics, alarms, site layout, and guided setup, with hot swappable expansion modules connected via the base or CAN bus.
Always-on connectivity includes dual 1GbE WAN, Wi-Fi/Bluetooth, and optional 4G/5G cellular for seamless, redundant access. An optional remote monitoring module extends site-wide visibility by integrating HVAC, generators, fuel tanks, automatic transfer switches (ATS), meters, and sensors, reducing hardware clutter and enabling faster, smarter decisions. The controller is designed to scale with native support for 150+ device models from leading vendors, and its real-time telemetry, alarms, and remote diagnostics help reduce truck rolls and accelerate issue resolution.
Backed by IEC 62443 and FIPS 140-3 security standards, the controller supports advanced protocols and hardware-based encryption to keep your system secure. Whether scaling across locations or integrating with modern energy platforms, the Pulsar 200 controller is built to maximize uptime, efficiency, and operational agility.
| Product Name | Product Description |
|---|---|
| Controllers | |
|
Pulsar 200
Documents
|
The Pulsar 200 is a versatile controller suitable for systems of any size, from small to large. It easily expands with CAN bus communication and includes built-in I/O, and can be expanded with the modules and options listed below. |
| I/O Modules | |
|
P1A - Standard I/O Module Type A
Documents
|
Includes two voltage sensing inputs, two current sensing inputs, and six NO/NC alarm inputs. Features six Form C relays, CAN interface, low voltage disconnect control, and one-wire temperature and humidity inputs. |
|
P1B - Standard I/O Module Type B
Documents
|
Offers all the features of P1A, plus an integrated low-voltage disconnect. |
|
P2A - Extended I/O Module
Documents
|
Equipped with four voltage sensing inputs, four current sensing inputs, and 12 NO/NC alarm inputs. Also includes 12 Form C relays, CAN interface, and 1-wire temperature and humidity inputs. |
Options
| Product Name | Product Description |
|---|---|
| LV Disconnects | |
| 2-LVD - CAN Bus Module | Features two low-voltage disconnects for seamless connection to the base unit via CAN bus. |
| Wireless Communications | |
| WBL - Wi-Fi and Bluetooth Card | A dual-function card supporting both Wi-Fi and Bluetooth connectivity for seamless wireless communication. |
| Remote Monitoring | |
| M500 - Monitoring Module | Extends site visibility by integrating diverse alarms, sensors, and control points into a single platform. |
| M1000 - Ethernet Module | Expands networking flexibility with additional high-speed Ethernet and fiber options. |
| Expansion Slots | |
| EMH01 - Module Holder | Single-slot holder designed for easy door mounting. |
| EMH04 - Expansion Backpack | Four-slot expansion module to extend the capabilities of the base unit. |
| EMH07 - Module Holder | Seven-slot holder designed for easy door or 1RU shelf mounting. |
| RPMs | |
| VMM - Voltage Monitoring Module | Features six voltage measurement channels, with a range of 0-60 VDC for precise voltage monitoring. |
| SMM - Shunt Monitoring Module | Offers six shunt voltage measurement channels, with a range of -200mV to +200mV for accurate shunt monitoring. |
| BIM - Binary Input Module | Equipped with six polarity-sensitive dry contact inputs for reliable binary signal monitoring. |
| TMM - Temperature Monitoring Module | Includes six temperature measurement channels, with a range of -40°C to +125°C. Supports Thermocouple and RTD (Pt100, Pt1000) input types for versatile temperature monitoring. |
Retrofit Kits
| Product Name | Product Description |
|---|---|
| Pulsar Plus to Pulsar 200 Upgrade Kits | |
| 19-inch Infinity S/BPS Upgrade Kit | Upgrades your system with a new door for the Pulsar 200 and a retrofit I/O module for seamless hot-swap site replacement. |
| 23-inch Infinity S/BPS Upgrade Kit | Includes all the features of the 19-inch kit, offering enhanced compatibility and expanded functionality. |
| 19-inch Infinity S/BPS Upgrade Kit with Integrated LVD | Features a new door for Pulsar 200, a retrofit I/O module, and integrated low-voltage disconnect for complete system integration. |
| 23-inch Infinity S/BPS Upgrade Kit with Integrated LVD | Offers all the features of the 19-inch kit; plus an integrated low-voltage disconnect for enhanced system performance and safety. |
| Infinity M Upgrade Kit | Includes a new panel with Pulsar 200 and a factory-installed retrofit I/O module, designed for easy hot-swap site replacement. |
| Infinity M Upgrade Kit with Integrated LVD | Includes a new panel with Pulsar 200, a factory-installed retrofit I/O module, and an integrated low-voltage disconnect for seamless hot-swap site replacement. |
| Infinity M (H5692448 G222VN) Upgrade Kit | Includes a new door for the Pulsar 200 and a retrofit I/O module for seamless hot-swap site replacement and upgraded system functionality. |
| Infinity M (H5692448 G223VN) Upgrade Kit | Features a new door for the Pulsar 200 and a retrofit I/O module for seamless hot-swap site replacement and upgraded system functionality. |
